Description

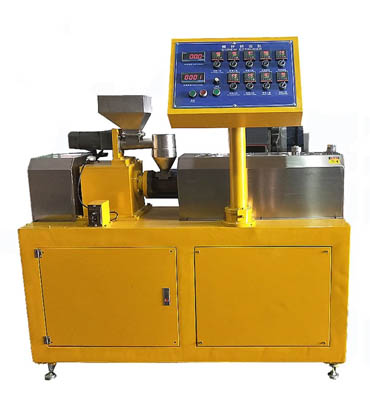

A single screw extrusion machines have one screw that works by pushing plastic material through a die, which is customized to meet your final specific end shape requirements you need.
The single screw extruder machine usually consist of tubular barrel, a revolving screw, plunger within the barrel ann hopper.
This single extruder machine are designed for melting, processing and re-melting plastic, thermoplastics,polyethylene ,also applicable for HDPE,LDPE, PPR, soft PVC,ABS and other plastics ,It feature a high capacity for industrial use when dealing with extruding reactive polymeric materials. This single screw plastic extrustion machine proves its efficiency when PVC pipe manufacturers have two or more plastics ready to compound.
The plastic extruder has advanced design, high quality, good plasticization, low energy consumption, and adopts involute gear transmission, which has the characteristics of low noise, stable operation, large bearing capacity and long service life.
The extrusion machines are also widely used in other many industries ,including automotive, aerospace, and construction applications.
These extrusion machine are mainly used in tire tread, gaskets, tape, and other rubber extrusion, it is energy saving, high and low, good plasitcization and refined glue quality characteristic.
Simptek machine is an expert plastic extrusion manufacturer, we provide a fully customizable range of plastic polymer extruders for a variety of sizes, applications and materials.
From a lab scale extruder to industrial production capacity with Single and Twin-screw extruders machine , we provide every kind of bespoke extruders tailored to your needs.
Specification
| Model | Diameter(mm) | L/D | RPM (r/min) | Power (kw) | Torque(NM) | T/N | Capacity(kg/h) |
| SMEP20 | 20 | 32-44 | 600 | 5.5 | 30 | 4.8 | 6.5-15 |
| SMEP36 | 36 | 32-48 | 600 | 15 | 115 | 4.2 | 30-75 |
| SMEP51 | 51 | 32-52 | 500 | 45 | 405 | 5.1 | 100-200 |
| SMEP63 | 63 | 32-62 | 400 | 55 | 620 | 4.4 | 160-250 |
| 500 | 75 | 675 | 4.8 | 200-300 | |||
| SMEP72 | 72 | 32-64 | 400 | 90 | 1015 | 4.7 | 225-350 |
| 500 | 110 | 1005 | 4.6 | 300-550 | |||
| SMEP92 | 92 | 32-64 | 600 | 132 | 2815 | 5.9 | 650-1050 |
| 800 | 160 | 2250 | 4.7 | 750-1250 | |||
| SMEP135 | 135 | 32-48 | 400 | 315 | 6190 | 4.6 | 1500-2500 |
| 500 | 400 | 6750 | 5.1 | 2000-3500 |

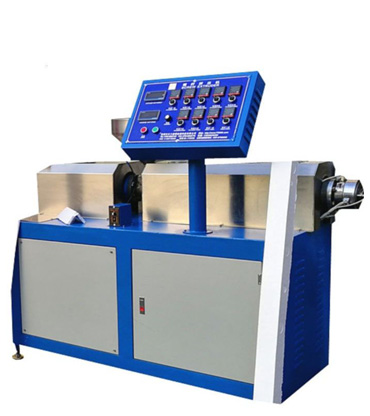

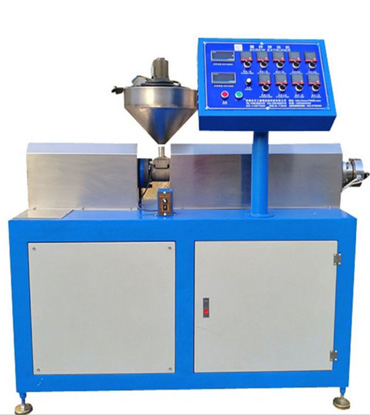

Usage of Laboratory Extruders
Laboratory extruder machine are small scale production extruders with a variety of important uses:
*Small Batch Production
Laboratory extruder machine are ideal to provide the delivery and response time for low volume production.
*Product Development
This laboratory extrusion equipment also can be vital for a manufacturing company to develop new products and test new extrusion processes.
*Material Research and Testing
This lab extruder machine can be also used to test for new materials or different formulations before mass production.
*Quality Control
It is crucial to test the quality from several samples on a large quantity of goods ,so that ensure the constant improvement and optimization for ongoing research and development for final products.
*Education and Training
The versatile small batch table top Lab extruders can are the mostly ideal laboratory equipment for hands-on experience due to its fast changeover capability, maximize training time.
Application of Laboratory Extruder
Our laboratory twin screw extruder are applicable for compounding, direct extrusion, degassing (devolatilization) and reaction extrusion.
They can be used to stimulate the continuous extrusion process for batch samples, new material research, new process development and small quantity production.
The extruder machine are also applicable for the following material :
* Polypropylene (PP)
* Polyethylene (PE, also known as polyethene or polymethylene)
* High-density polyethylene (PE-HD)
* Polyurethane (PU or PUR)
* Thermoplastic polyurethane (TUR)
* Polystyrene (PS)
* Acrylonitrile butadiene styrene (ABS)
* Ethylene vinyl alcohol (EVOH)
* Polyesters like polyethylene terephthalate (PET – including recycled flakes) or amorphous PET (A-PET)
