Description

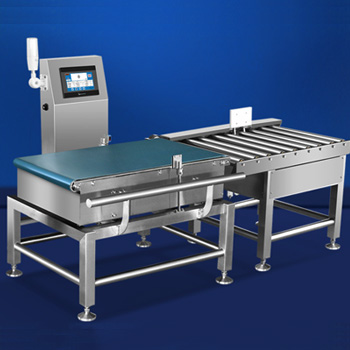

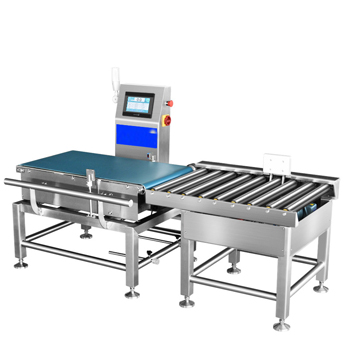

A Check Weigher Conveyor machine is an automated system that continuously weighs product weight as they move along the rolling belt. This check weight machine helps verify whether products fall within a redefined specified weight range. If any product that doesn’t meet the required weight is automatically rejected from the line, which reduce the risk of under- or overweight products reaching the consumer.
The Check weigher machine can detect the weight of products in the production line by the dynamic weight reading method with high speed, and it can detect the unqualified products in the continuous production line, there will be a rejector to remove off the unqualified products automatically.
The check weigher machine moves products through the use of a conveyor belt and rollers. It features a wide checking range with a maximum checking weight . This belt conveyor checker machine is widely used for heavy product weighing for rubber ,plastic material ,bulk paper bags, plastic bags, paper boxes, metallized film packages and other rigid packages.
Our Check weigher is widely used in electronic hardware, pharmaceutical, food, chemical, beverage, health care products, and many other industries. For example, it can be used in food industry to check the weight of bread, cake, hams, instant noodles, frozen food, food additives, preservative etc, packaging products like bag, sachet, box, jar, cans, cartons, etc.
Standard Feature
* 3g to 1,000g weight capacity
* +/- 0.3g accuracy
* up to 150 weighments/min.
* up to 65 FPM adjustable speed belt
* 8.6” belt width
* 9.8’ to 17.7’ belt length
Technical Parameters
| Product model | SP-100 Automatic check weigher | Rated power | 0.4KW |
| Weighing scale | <40Kg | Highest sorting accuracy | 土5g~士30g |
| Minimum scale | 1g | Conveyor speed | 20~35m/min |
| The fastest speed | 30pcs/min | Eliminate speed | Push rod |
| Presetproduct number | 2000 | External steam source | 0.6-1Mpa |
| Air interface | Φ8mm | Single weighing range | <40Kg |
| Test item size | ≤650mm(L)*490mm(W) | ||
| Weigh the size ofthe conveyor belt | 1075mm(L)*500mm(W) | ||
| Transport direction | Face the machine, left in and right out | ||
| Work environment | Temperature:0C~40°C Humidity: 30%~95% | ||
| Other standard | Windshield (colorless and transparent),standard weight | ||
| equipment | |||
| The height of beltom the ground(mm) | 650mm~750mm(Can be customized) | ||
| Alarm way | Detect metal foreign body automatically stop operation, and sound the alarm | ||
| Mechanicaldimensions | 1880mm(L)*935mm(W)*1060mm(H) | ||
| Machine material | 304 stainless steel polished finish | ||
| Control system | High speed A/D sampling controller | ||
| Power supply | Aone-wayAC200V-240V(110V/380V Can be customized) | ||
| Operationscreen display | Chinese, English (Customized in Turkish, Spanish, etc.) | ||
| Protection level | Comply with IP-65 international standard |
Why You Need A Check Weigher?
* Compact Design: Compact design automatic checkweigher make it is possible to work in small production spaces.
* Cost-Effective Maintenance: Our high quality check weight system are all made of SUS304 stainless steel matieral and the latest technology. So this checkweight nearly don’t need any maintaince .
* Customizable Options: Our checkweighers may offer optional features or customizations to tailor the system to specific production needs without adding unnecessary complexity.
Benefits of In-Line CheckWeigher
Our CheckWeigher machine comes with a large screen to help you better analyze weights and store large amounts of data. This makes your packaging line more efficient and accurate while increasing productivity.
* Reduce the risk of accidents and injuries.
* Better operational efficiency.
* Versatile and ideal for many different conveyor systems.
* Easy to integrate into existing systems.
* Cost-effective improvements to workflow.
* Custom design and made standardized software configuration settings
*Detailed Analysis through our own software system are provided (including batch summary reports, daily batch reports, fail analysis reports, etc.
Application
* Food, Health & Pharmaceutical, Manufacturing
* Meat, Poultry & FishMeat, Poultry & Fish
* Fruit, Vegetables & NutsFruit, Vegetables & Nuts
* Convenience Food | Food-to-GoConvenience Food | Food-to-Go
* Dairy and Egg ProductsDairy and Egg Products
* Food including: meat, dairy, wet and dry ingredients, baked goods, confectionary products, Wet (dairy, hummus) Dry (rice, oatmeal), and Raw (chicken, beef, fish, vegetables and fruits).
* Non-food packages can be weighed including:
Transport;
*Pharmaceuticals:drugs,medicine；
* Automotive
* Chemicals; Rigid (cans, cardboard packages, plastic, glass) Soft (plastic, paper, foil), bullets;
* Metal manufacture and fabrication industries: bags of construction materials like cement;
