Description

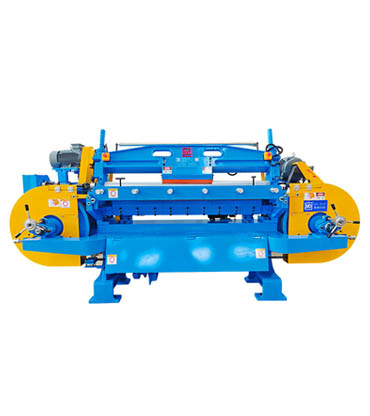

A foam skiving machine ,also named as splitting machines or continuous bandknife or a foam splitter equipment ,it mainly consist of main engine, motor, pressing plate, guide rail and knife belt. This EVA PE foam cutting machine is equipped with a standard set of custom pressure-shape roll and applied to splitting the foamed rubber, foamed EVA, PE,etc. at a high speed and precision.
This EVA PE foam splitting machine is a specialized device used to cut EVA foam sheets into thinner layers ,it is mainly used to split rubber or plastic foaming plates,EVA foaming plates, sports shoes insoles, sand shoes and slippers.
This EVA foam Splitting Machine features high-precision cutting, adjustable thickness settings, an automated feeding system, dust extraction systems, robust construction, and safety features.
By using this EVA splitting machine ,it would enhance productivity, ensure consistency, and improves cost efficiency .
The EVA or Pu foam splitting cutting machine is made up of main engine, motor, pressing plate, guide rail and knife belt, they are widely used in various industries including footwear manufacturing, sports equipment production, automotive industry, and packaging solutions.
This EVA foam cutting machine is highly efficient and accurate to shave raw material in sheet to any required thickness. Thanks to its automatic feeding system ,which thus improve the cutting efficiency remarkably, and make the cutting more ease for operator. It is mainly used to separate small pieces of materials into different thickness materials according to customers’ needs. For example, for insoles or midsole materials ,they may require materials with different thickness in front and thick behind them, so that they can save cost and help soft hardness of products. This EVA foam skiving cutting machine is widely used for EVA foam, PE , Rubber foam sheet , PU foam, memory cotton, Hi poly, Ortholite ,EPE foam plastics and other more mateirals.
This rubber splitting machine is suitable to cut rubber foam board, EVA foam board sports soles, beach shoes, slippers and other materials’ in concave-convex shape ,it is suitable for the highly and lowly foaming and processing of rubber, PE and EVA, featuring high speed and high accuracy.
Specification
| Model | spkp-003 | spkp-005 |
| Width | 1800(71inches) | 1500(59inches) |
| Power | 15KW | 15KW |
| Speed | 15-60m/min | 15-60m/min |
| Thickness Adjustment | Φ84*1800mm | Φ84*1500mm |
| Feeding Mode | Steel wheels | Steel wheels |
| Slice Thickness | Up(1-120mm) Down(1-40) | Up(1-120mm) Down(1-40) |
| Hardness | 30-80 shaw c | 30-80 shaw c |
| Material | EVA, PE, EPDM, PVC, EPE, EPP | |
| Moter Brand | Siemenbader/MT JS | |
| Contactor | Schneider | |
| Bearing Brand | TWB/LK | |
| Counter | Yangmin, TaiWan | |
| Size | 3800W*1200L*1800mmH | 3500W*1200L*1800mmH |
| Machine Weight | 3500kg | 3300kg |
| Splitting width | 1700mm | 2100mm |
| Splitting hardness | 80-850 | 80-850 |
| Splitting precison | ±0.05mm | ±0.05mm |
| Splitting thickness | 120mm/60mm | 120mm/60mm |
| Speed | 10-40m/min | 10-40m/min |
| Equipment weight | 3400kgs | 3700kgs |
| Installation size | 3900x1150x2100mm | 4300x1150x2100mm |
| Motor power | 11KW | 12.5KW |
Key Features of an EVA Splitting Machine
*High-Precision Cutting: The EVA foam splitting machines are equipped with sharp, durable blades or wire cutters that can accurately split thick EVA foam sheets into thinner slices as per your specific needs .
*Adjustable Thickness Settings: This foam skiving machine allow you to adjust the setting to control the thickness of the foam layers that you want to split .
*Automated Feeding System: All of our EVA foam splitting machines have automated feeding system, which greatly ensure the foam sheets can be evenly splitted . Its automation feature help to increase the machine’s efficiency and reduces labor costs for you.
*Dust Extraction Systems: As the process of splitting material would generate much dust and particles, thus dust extraction systems equipped for such EVA splitting machines necessary . These dust extraction systems help Tto maintain a clean working environment and protect the machinery and operators from potential harm for you.
*Robust Construction: The EVA foam splitting machines are constructed from high-quality, durable materials ,which can endure the stresses of continuous operation for a long time .
*Safety Features: The EVA foam splitting machines come with emergency stop buttons for great safety protection around the blades, and it feature automatic shut-off function to ensure operator safety.

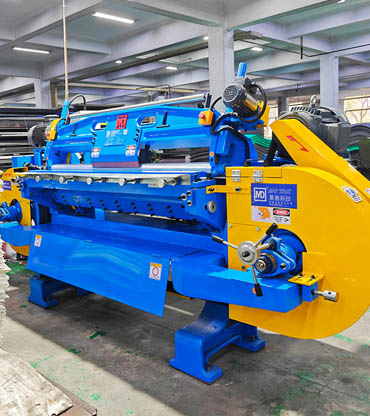

Details Of EVA Foam Skiving Machine
Advantages of Simptek EVA Foam Cutting Machine
* Perfect Stability : The EVA foam cutting machine is integrated welded fuselage ,with a machine weight up to 1500KG ,which allow the skiving machine keep stable even during high-speed operations, stability is maintained to ensure cutting precision.
* Precision in Motion: Adopt imported Mitsubishi servo motors from Japan, which guarante high precision and speed in operation, ultimately leading to more accurate cuts.
* Efficient Material Handling: The EVA foam splitting machine features an automatic feeding system with an intelligent rolling adsorption table, capable of theoretically cutting materials of infinite length.
* Intelligent Tool Change: An intelligent tool exchange system further enhances efficiency by saving time and accommodating the cutting requirements of different processes.
* User-Friendly Interface: The machine’s digital operation is facilitated by a resistive touch screen, simplifying size adjustments and overall operation.
* Versatile Cutting Capabilities: EVA foam cutting machine perform very well in cutting straight lines and intricate patterns. Its high precision and high speed make it significantly improve working efficiency and save much labor ,equal to 4-6 individuals’ working volume,saving much production cost for you.
A Wide Range Of Application
rubber or plastic foaming plates
EVA foaming plates
Sports shoes insoles
Sand shoes and slippers
EVA
EPP
EPE
PE polyethylene foam
SBR styrene butadiene foam rubber
CR neoprene foam rubber
EPDM ethylene propylene diene monomer foam rubber
XPE
IX
PUR
NBR
Auto industry, Gasket, shock absorption, sound-proof
Electric & electronic industry, Pads for sound & vibration_proof
Sports & leisure industry, shock absorption, lags
Warehouse & Shippment
