Description

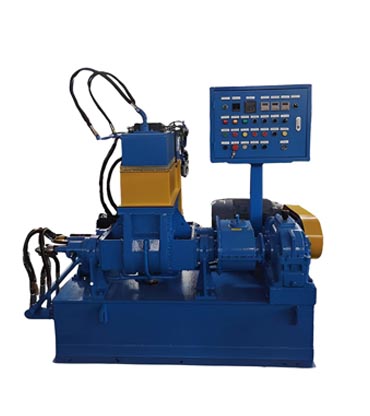

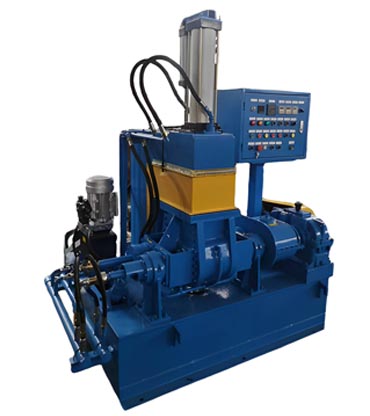

This compact structure Laboratory Ceramic Dispersion kneader is specially designed for mixing ceramic powders and binders .Such as alumina, zirconia, silicon nitride, boron nitride, aluminum oxide, silicon carbide etc. Usually the ceramic kneader is used in ceramic injection molding (CIM) industry.
By adopting advanced coaxial separation technology, with one end face of the rotor as the shaft center, it can be separated, this laboratory ceramic internal mixer has been developed for expensive, high hard zirconia, aluminum oxide easily contaminated compared with traditional Lab internal mixers machine.
The inner cavity of this ceramic dispersion kneader machine is treated with high-end wear-resistant materials, which protect invironment from polluted. When this equipment working its inner rotor suspended in the middle ,which make it convenient to clear colors and change materials on process.
The whole mixing chamber of this laboratory ceramic dispersion kneader can be totally opened and rotors also can be taken off which makes the ceramic kneader easier to clean.Its surface of this chamber is made of wear-resistant layer is dealt with plasma high temperature rapid flame spraying technology to spray a tungsten carbide coating.
As we all know ,the tungsten carbide hard particles feature with extremely high hardness, strength, elastic modulus, and chemical stability, which play an important role in resisting external friction, wear, and corrosion.
Our laboratory ceramix kneading machine are applicable to ceramix & metal powder, rubber, plastic ,and chemical industry. They are also very suitable for kneading many other material ,including polymer , EVA., rubber, TPR, sole, rubber roller, hoses, conveyor belts, rubber ties ,sponges, vibration insulator, elastic cord, sealing materials, tire, tapes, master batches, pigment, ink, electric rubber parts etc.
It only takes approx 3 hours for every batch ,you can also shorten or lengthen the mixing time as per your specific material to get a better dispersing result .Compared to the previous processing methods ,this laboratory ceramic dispersion kneader is more efficient and shorter time .
Special Treatments for the Surface of Mixing Chamber
1) Hard Chrome-plating;
2) Spraying tungsten carbide imported from Germany(the green color in the picture above);
3) A specially alloy steel imported from Japan(the whole mixing chamber,rotors and ram are made of this alloy).
How does a Simptek Laboratory Dispersion Kneader work?
This lab dispersion kneader is specially designed for mixing a variety of materials ranging from low viscosity adhesive to high viscosity polymers ,it feature with small volume, and lower power consumption,the lab kneader equiopment is a high-performance mixing device specially used for for formulation research and small-scale manufacturing.
The dispersion kneader has two blades that rotate toward side to side to cut, mix and blend materials applying different speeds and shear force,which accordingly provide excellent cross mixing of all raw materials.
Excellent Dispersability
* Excellent results even with hard-to-mix materials.
* Fillers can be mixed with a variety of materials quickly and easily.
* Compounds are produced with exceptional uniformity.
* Materials are intensively mixed by the pressure lid so that polymers are bonded with fillers more effectively, improving filling ratios
Excellent Cooling Efficiency
* Unique Jacket Structure Facilitates Low-Temperature Mixing
* The jacket structure helps stabilize and control the material’s temperature so as to prevent thermal deterioration. Material mixing is performed at the optimum temperature.
* The superior cooling effect of the jacket also makes it possible to mix rubber materials and curing agents at low temperatures
Easy Maintenance
* Easy Cleaning and Maintenance
* The rotor surface which contacts the mixed material is made of a wear-resistant alloy.
* Models with a gland packing are also available
Uses of Rubber DIspersion Kneader
Rubber dispersion kneaders are vital rubber processing equipment ,they are highly demanded by many industries that process and make rubber,plastic ,silicone etc. The dispersion kneader are used for plasticizing , mixing ,kneading ,and dispersing rubber natural rubber, synthetic rubber, recycled rubber and plastics, foamed plastics etc. They ensure the final product uniformly , and create a rubber compound with desired properties. If you are making rubber products ,like sheets ,tires or belts, gaskets, sponge, soles, sandals, automobile, mechanical Goods etc,then a Dispersion Kneader Machine is key for getting the properties and satisfy you needs . Its application Including:
* Rubber Compound
* Plastic Compound
* Chemixal Compounds
* EVA form
* Ceramic
* Color Masterbatch
* Semi-conductive
* Rubber/plastic magnet
* Composite material
* Degradable material
* Polymer blending
* Metal Powder
Benefit of Simptek Kneader
* Enhanced productivity : Increase your production efficiency with this high-capacity kneader, reducing processing time and enhancing overall output.
* Consistent Quality :Achieve unparalleled consistency in rubber compounds ,satisfying the most stringent quality standards with every batch.
* Versatility : Suitable for a wide range of rubber formulations and applications , also applied for diverse industry needs .
* Reliable Performance : Experience reliable and precise mixing ,ensuring uniform dispersion and superior product quality .
