Description

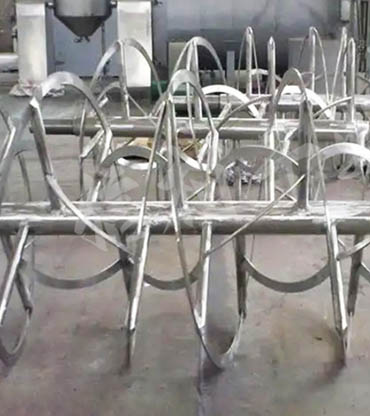

This stainless steel horizontal paddle blender mixer is also known as mud mixers ,it feature a u-shaped trough with a horizontal agitator inside, it use paddle-shaped agitators that scoop, lift and tumble various types of materials homogeneously mixed.

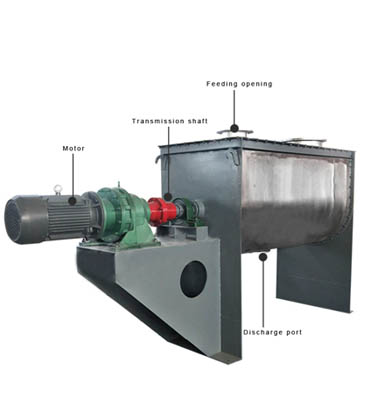

The stainless steel horizontal paddle mixer consist of W-shaped tank, top cover with/without openings, reverse rotation double shaft equipped with paddles, transmission unit, support frame, sealing element, discharge structure and so on.
The Paddle mixer machine is mainly used for mixing and blending powder ,granules powdery granular, short fibreed, moist solids and bulk solids with liquids or pastes ,it is also suitable for bulk solids with liquids or pastes .
We customize and supply horizontal paddle blending mixer in different materials, hard-to-handle powders, granular materials, as well as the appropriate advice to select the ideal type of mixer for the materials that require implementing and obtaining homogeneous mixtures in short periods of time.
The paddle mixer are available with a wide range of optional features, including heating/cooling jacket, vacuum capability, interchangeable ribbon agitator, sanitary finishes, all-stainless steel construction, spray nozzles for liquid additions, pressure feed vessels, pneumatically-operated covers and valves, explosion-proof motors and controls.
In addition , these paddle blenders machine are easily tailored to meet unique mixing requirements.
Benefits of Choosing a Simptek Paddle Blender
Simptek Paddle Blender mixers are ideal for certain kinds of trail mixes with friable and delicate ingredients, food products containing discrete vegetable or fruit pieces, polymer beads, sands and ceramics, to name a few. The stainless steel paddle blender mixer can heat, cool, or dry materials under vacuum. It can also coat solid particles with small amounts of liquid. In addition, it can mix wet applications such as soups, batters, slurries and certain pastes.
How Does a Paddle Blender Work?
Mixing Process:The mixing process begins when the materials are loaded into the mixer container. Once the container is loaded, the motor is turned on and the paddles begin to rotate.The shaft is driven by a motor that is actually connect with paddles ,which are precisely pitched to move material both radially and axially in opposite directions.
As the paddles rotate, they pick up the materials and mix them together.
Mixing Time: The amount of mixing time rely on the type and volume of materials being mixed. However, most paddle mixers have a set mixing time that can be adjusted depending on the application.
Application of Paddle Blender Mixer
The industrial paddle mixer can mix any powder with granular ,powder with powder ,and it is also ideal for mixing liquid and other as follows:
* Circular economy and recycling.
* Minerals and ores.
* Fertilizers, chemicals, fine chemicals.
* Food and pharmaceuticals
* Batteries
* Chemicals
* Ceramics
* Chemicals
* Rubber
* Plastic
* Polymer
* Chewing gum
* Cosmetics
* Crayon and pencil lead
* Inks
* Pigments
* Chocolate and other food products
Operation of Paddle Blender Mixer
1.Wear you protective tools including goggles, safety boots ear protection and glove.
2. Ensure all guards and covers are in place before using the mixer machine.
3. Ensure the paddles are rotating before adding the material to be mixed. Stop the paddles before dumping the
mix.
4. Do not move the paddle mixer machine while the drum is full or while the engine is running.
5. Do not attempt to repair or service the blending mixer machine while it is running.
6. Stop the engine if leaving the paddle mixer machine unattended.
7. The exhaust and other parts get very hot in use; Be careful not to burn yourself.
8. You must dispose of the waste from unused mixes properly; follow the instructions on the
manufacturer’s container or leaflet.
9. You must clean the paddle mixer and especially the drum and paddles as soon as you have finished work before the mix goes hard
Why Choose a Simptek Paddle Blender
Design – Simptek Paddle Blenders are fabricated from thick, good quality SUS304 stainless steel wetted parts, its sizes ranging from 1 to 800 litre capacity. The agitator is driven by a compact one-piece motor reducer (gearmotor) which offers greater efficiency and performance compared to belt- and chain-driven designs.
Safety – All Simptek Paddle Blenders Mixer have clamps which secure the cover to the trough ,which can be supplied to further reduce dust and fume migration. Customizable safety grating, bag dump stations, automated valves and various other operator-friendly options are offered.
