Description
If you’re looking for hydraulic guillotines bale cutter machine, we have a diverse selection suitable for various cutting capabilities – roll splitting, nonwoven recycling, etc. These Guillotine cutting machines are a popular type of Recycling Machines.

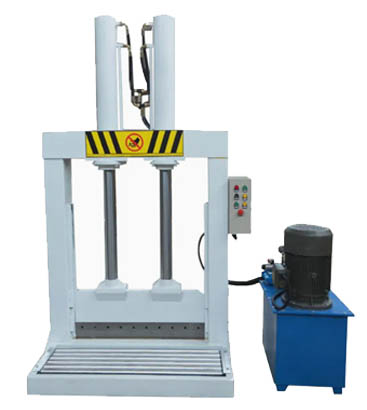

This hydraulic guillotine bale cutter adopte the overall welding frame structure and undergoing vibration aging treatment, the machine tool has good rigidity, high precision and good precision retention. It mainly compose of rubber cutter, frame, working cylinder, base, auxiliary workbench, hydraulic system, electrical system and other parts. The base under the rubber cutter is equipped with a nylon backing plate to protect the blade of the rubber cutter.
This hydraulic guillotine cutting machine is mainly suitable for cutting natural rubber, synthetic rubber and plastic materials,also ideal for EVA, Silicone ,Stainless steel etc. The guillotine bale cutter is especially used to installe next to the rubber kneader and internal mixer, for cutting small rubber materials into pieces as your needs .
The hydraulic guillotine bale cutter mainly composed of a rubber cutter, a frame, a working cylinder, a base, an auxiliary workbench, a hydraulic system, and an electrical system.
When cutting raw rubber, manually place the rubber under the rubber cutting knife, and then press the start button, the rubber cutting knife is driven by the piston rod along the slide on the rack to cut the rubber.
Designed for versatility, the hydraulic guilliotine rubber plastic cutting machine can perform a wide range of cutting tasks, including straight cuts, angles, curves, notches, and intricate shapes, catering to diverse industrial applications.Each time when you are ready to cut the rubber material , just feed the raw material into the knife roller , then press the motor button in cabinet , knife will fall down and cut the material.
Our range of hydraulic guillotines cutting machine can handle different sizes and types of raw materials for rubber ,plastic, silicone , ensuring efficient and accurate cutting operations.
Our team of experts is ready to assist you with finding the ideal plastic guillotine bale cutter that meet with your production specifications. Contact us today with your requirements or explore the available guillotine machines in our inventory.
Main Structure
* Frame: Welded steel construction with excellent rigidity and stability
* Upper Knife Beam :a triangle steel-sheet welded structure with guiding rail plate ,bade and back-guage device .
* Cylinders Device : Including two piston cylinders and sealing components on the left and right, they directly drives the movement of upper knife beam .
* Hydraulic System : It is the driving system of the rubber bale cutter machine , mainly composed of main motor ,oil pump ,valve ,oil tank ,pipings etc .
* Blade Gap Adjustment : The gap can be adjusted according to the plate thickness, this device consist of adjustment handle ,lever ,dial etc
* Electric System: The electric system is installed on the left support pillar ,which is convenient to operate and control for this rubber cutting machine .
Key Features of a Hydraulic Guillotine Bale Cutter
* Hydraulic Power and High Precision:
Hydraulic guillotines utilize the power of hydraulic power to cut material precisely and efficiently, even for thick and tough materials, such as metal etc. The hydraulic system ensures uniform pressure distribution along the length of the blade, resulting in clean, burr-free edges.
* Versatility & Multi Function:
Hydraulic guillotines cutting machine are capable of cutting a wide range of materials, including all kinds of rubber ,plastic,EVA ,silicone ,even for hard material like metal alloy ,stainless steel, aluminium, brass etc. Its blade can be setted according to material thickness and cutting requirements by way of adjusting its clearance and cutting angle settings.
*Hydraulic System: delivering clean and uniform cuts for various production demands due to its powerful cutting force. Additionally, this makes them suitable for working with tough and thick materials. Some of the best know in recycling industry are a roll splitter or a bale cutter.
* Safety of a Hydraulic Guillotine:
This hydraulic guillotine bale cutter equipment are equipped with advanced safety guard,which protect the safety of operators from any accidents.
* Durability and Reliability:
This hydraulic guillotines bale cutter are designed to withstand the rigours of continuous industrial use,it is constructed with robust steel frames and high-quality components. Definately regular maintenance and servicing would surely prolong its lifespan of guillotine cutting machine and ensure its optimal performance.
Specification
| Model | Blade width | Stroke | Pressure | Oil pump discharge | Oil capacity | Motor power | Total weight | Dimension |
| (mm) | (mm) | (ton) | (L/Min) | (KG) | (KW) | (KG) | (mm) | |
| SMP-40T | 900mm | 900mm | 40 ton | 46 L/min | 70kg | 7.5kw | 1400kg | 1200X900X2800mm |
| SMP-60T | 1000mm | 900mm | 60 ton | 63 L/min | 110kg | 11kw | 2500kg | 1300X800X2900mm |
| SMP-100T | 1200mm | 1000mm | 100 ton | 63 L/min | 130kg | 15kw | 3100kg | 1400X1000X3100mm |
| SMP-250T | 1500mm | 1000mm | 250 ton | 250 L/min | 200kg | 37kw | 4000kg | 1800X1200X3300mm |
| SMP-300T | 1500mm | 1000mm | 300 ton | 340 L/min | 250kg | 37+11kw | 4500kg | 1800X1200X3400mm |
How Does Rubber Bale Cutter Work?
The high-precision hydraulic-powered rubber bale cutter are used to cut rubber into pieces as per speicific needs. The rubber bales or block can be fed through the machine. These rubber piece cut travels through the rubbe bale cutter machine which ensures smooth movement.
1. Check blade is in the up position.
2. Open the gate.
3. Place slab of rubber along the cutting edge.
4. Leave the cage area and close the gate.
5. Press the cut button to lower the blade to cut the rubber slab.
6. Blade rises after the cut sequence; wait until the blade is fully up.
7. Open the gate to remove the cut pieces.
8. Repeat the cycle.
Wide Application
Hydraulic guillotines are widely used in various industries, including automotive, aerospace, construction, and manufacturing in many industries. These guillotine bale cutter excel in cutting thick bale ,sheets, plates, and profiles with precision and efficiency, which make these cutting machine indispensable tools for fabricating components, panels, and structural elements., it is also very applicable for other plastic ,polymer,silicone including:
ABS
Silicone
Nitrile Bale
NBR
FKM
CR
HNBR
ACM
EPDM
SBR
EVA
Bench bale cutter
Slicing type
Cross blade type
And many more…
Quotation Needs to Know:
1. What is width of your sheet? Thickness?
2. What is the slitting strip width? The blades can be adjustable or fixed? Blades number?
3. What is raw material of your sheet? What is material hardness?
