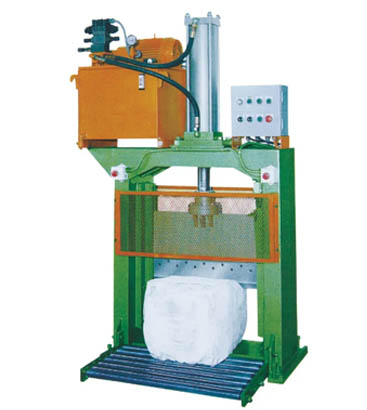

* Vertical Hydraulic guillotine cutting machine for waste plastic film recycling
* Hydraulic Power System – Ensures stable, powerful, and consistent cutting performance.
* High-Precision Blades – Delivers smooth, straight cuts with minimal waste.
* Adjustable Back Gauge – Enhances accuracy and repeatability.
* Robust Frame Structure – Heavy-duty steel construction for long-lasting durability.
* User-Friendly Controls – Easy operation with intuitive settings.
* Safety Features – Equipped with emergency stop and protective guards.
* Steel Blade — Blade is made of special alloy steel in order to reduce the abrasion
* Labor Saving — Significant time and safety advantages over manual methods of cutting
* Easy and safy to operate , Less maintenance
• Suitable for cutting rubber, plastic, all kinds of rubber products and etc.
* Meterial: Stainless steel
* Blade width: 800mm
* Stroke: 800mm
* Pressure: 40 ton
* Oil pump discharge: 46 L/min
* Voltage: 380V/415V or custom
* Power(W): 7.5kw
* Dimension(L*W*H): 1200X900X2800mm
* We can customize the rubber guillotine as per your special requirements

Description

A Guillotine shearing machine is also known as Guillotine shearing machines,rubber cutting machine, it is specially designed for precision, durability, and smooth operation ,widely used for cutting and shaping rubber ,plastic ,silicone sheet in various manufacturing industries.
The Guillotine bale cutter machine mainly consists of a cutting blade and a moving blade that is controlled by a hydraulic or mechanical system. The rubber or plastic raw material is placed on the cutting table and the moving blade is brought down to cut material into small piece as desired.
Upgrade your cutting efficiency with our high-performance hydraulic guillotine cutter, the guillotine bale cutter are ideal for rubber ,plastic ,silicone ,PVC ,metal, sheet steel, aluminum, and other metal materials, this hydraulic cutting machine ensures clean, burr-free cuts with minimal effort.

Our team of experts is ready to assist you with finding the ideal plastic guillotine bale cutter that meet with your production specifications. Contact us today with your requirements or explore the available guillotine machines in our inventory.

Main Structure

* Frame: Welded steel construction with excellent rigidity and stability
* Upper Knife Beam :a triangle steel-sheet welded structure with guiding rail plate ,bade and back-guage device .
* Cylinders Device : Including two piston cylinders and sealing components on the left and right, they directly drives the movement of upper knife beam .
* Hydraulic System : It is the driving system of the rubber bale cutter machine , mainly composed of main motor ,oil pump ,valve ,oil tank ,pipings etc .
* Blade Gap Adjustment : The gap can be adjusted according to the plate thickness, this device consist of adjustment handle ,lever ,dial etc
* Electric System: The electric system is installed on the left support pillar ,which is convenient to operate and control for this rubber cutting machine .

Key Features of a Hydraulic Guillotine Bale Cutter

* Hydraulic Power and High Precision:
Hydraulic guillotines utilize the power of hydraulic power to cut material precisely and efficiently, even for thick and tough materials, such as metal etc. The hydraulic system ensures uniform pressure distribution along the length of the blade, resulting in clean, burr-free edges.

* Versatility & Multi Function:
Hydraulic guillotines cutting machine are capable of cutting a wide range of materials, including all kinds of rubber ,plastic,EVA ,silicone ,even for hard material like metal alloy ,stainless steel, aluminium, brass etc. Its blade can be setted according to material thickness and cutting requirements by way of adjusting its clearance and cutting angle settings.

*Hydraulic System: delivering clean and uniform cuts for various production demands due to its powerful cutting force. Additionally, this makes them suitable for working with tough and thick materials. Some of the best know in recycling industry are a roll splitter or a bale cutter.

* Safety of a Hydraulic Guillotine:
This hydraulic guillotine bale cutter equipment are equipped with advanced safety guard,which protect the safety of operators from any accidents.

* Durability and Reliability:
This hydraulic guillotines bale cutter are designed to withstand the rigours of continuous industrial use,it is constructed with robust steel frames and high-quality components. Definately regular maintenance and servicing would surely prolong its lifespan of guillotine cutting machine and ensure its optimal performance.

Specification

ModelBlade widthStrokePressureOil pump dischargeOil capacityMotor powerTotal weightDimension
(mm)(mm)(ton)(L/Min)(KG)(KW)(KG)(mm)
SMP-40T900mm900mm40 ton46 L/min70kg7.5kw1400kg1200X900X2800mm
SMP-60T1000mm900mm60 ton63 L/min110kg11kw2500kg1300X800X2900mm
SMP-100T1200mm1000mm100 ton63 L/min130kg15kw3100kg1400X1000X3100mm
SMP-250T1500mm1000mm250 ton250 L/min200kg37kw4000kg1800X1200X3300mm
SMP-300T1500mm1000mm300 ton340 L/min250kg37+11kw4500kg1800X1200X3400mm

How Does Rubber Bale Cutter Work?

The high-precision hydraulic-powered rubber bale cutter are used to cut rubber into pieces as per speicific needs. The rubber bales or block can be fed through the machine. These rubber piece cut travels through the rubbe bale cutter machine which ensures smooth movement.

1. Check blade is in the up position.
2. Open the gate.
3. Place slab of rubber along the cutting edge.
4. Leave the cage area and close the gate.
5. Press the cut button to lower the blade to cut the rubber slab.
6. Blade rises after the cut sequence; wait until the blade is fully up.
7. Open the gate to remove the cut pieces.
8. Repeat the cycle.

Wide Application

Hydraulic guillotines are widely used in various industries, including automotive, aerospace, construction, and manufacturing in many industries. These guillotine bale cutter excel in cutting thick bale ,sheets, plates, and profiles with precision and efficiency, which make these cutting machine indispensable tools for fabricating components, panels, and structural elements., it is also very applicable for other plastic ,polymer,silicone including:

ABS
Silicone
Nitrile Bale
NBR
FKM
CR
HNBR
ACM
EPDM
SBR
EVA
Bench bale cutter
Slicing type
Cross blade type
And many more…

Quotation Needs to Know:

1. What is width of your sheet? Thickness?
2. What is the slitting strip width? The blades can be adjustable or fixed? Blades number?
3. What is raw material of your sheet? What is material hardness?

Request A Quote
