Description

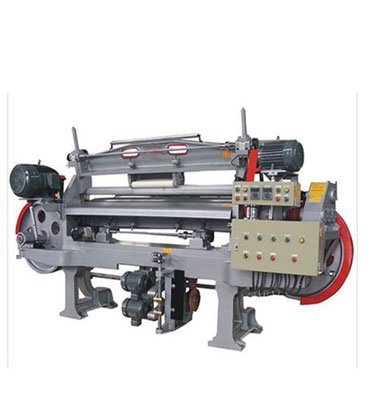

The powerful foam skiving machine ,also named as splitting machines or EVA or PE slicer machine,it is equipped with a standard set of custom pressure-shape roll and applied to splitting the foamed rubber, foamed EVA, PE,etc. at a high speed and precision.
The EVA&PE sheet splitting machine feature highly efficient and accurate to shave raw material in sheet to any required thickness,it is applied to splitting the foamed rubber, foamed EVA, PE,etc. at a high speed and precision.
This rubber splitting machine can be used to skive & cut all kinds of expanded rubber, Cork, PE,EVA foam products guarantying 1mm thickness tolerance, it is also suitable to cut rubber foam board, EVA foam board sports soles, beach shoes, slippers,Sports & leisure industry, shock absorption, lags and other materials’ in concave-convex shape ,it is suitable for the highly and lowly foaming and processing of rubber, PE and EVA, featuring high speed and high accurac
Product Specification
| Item | Contents | Dimensions |
| 1 | Skiving width | 1800mm |
| 2 | Skiving Thickness | 0.3-100 mm |
| 3 | Skiving Hardness | 10°-80° |
| 4 | Skiving Speed | 10M-40 M/min |
| 5 | Skiving Precision | ±0.05 m/m Or ±5% |
| 6 | Drive Power | 11KW |
| 7 | Blade Belt Dimension | 1.0×90×8100m/m |
| 8 | Skiving Dimension | 3900×1150×2100m/m |
| 9 | Equipment Weight | About3000KG |
| Splitting width | 1700mm | 2100mm |
| Splitting hardness | 80-850 | 80-850 |
| Splitting precison | ±0.05mm | ±0.05mm |
| Splitting thickness | 120mm/60mm | 120mm/60mm |
| Speed | 10-40m/min | 10-40m/min |
| Equipment weight | 3400kgs | 3700kgs |
| Installation size | 3900x1150x2100mm | 4300x1150x2100mm |
| Motor power | 11KW | 12.5KW |
Power Requirements
3 Phase/ 230v,380V,415V,480V and other custom voltage as per your specific needs
Key Features of an EVA Splitting Machine
*High-Precision Cutting: The EVA foam splitting machines are equipped with sharp, durable blades or wire cutters that can accurately split thick EVA foam sheets into thinner slices as per your specific needs .
*Adjustable Thickness Settings: This foam skiving machine allow you to adjust the setting to control the thickness of the foam layers that you want to split .
*Automated Feeding System: All of our EVA foam splitting machines have automated feeding system, which greatly ensure the foam sheets can be evenly splitted . Its automation feature help to increase the machine’s efficiency and reduces labor costs for you.
*Dust Extraction Systems: As the process of splitting material would generate much dust and particles, thus dust extraction systems equipped for such EVA splitting machines necessary . These dust extraction systems help Tto maintain a clean working environment and protect the machinery and operators from potential harm for you.
*Robust Construction: The EVA foam splitting machines are constructed from high-quality, durable materials ,which can endure the stresses of continuous operation for a long time .
*Safety Features: The EVA foam splitting machines come with emergency stop buttons for great safety protection around the blades, and it feature automatic shut-off function to ensure operator safety.
Warranty Information
Equipment manufactured by Simptek Machine Works will be guaranteed against defective parts or workmanship for one year from date of delivery, except in cases of neglect or abuse.
Benefits of Using Simptek EVA Splitting Machine
*Enhanced Productivity: By adopting automatic control ,the foam splitting machine significantly speed up production for manufacture &factories, which enable to meet high demand efficiently.
*Consistency in Production: Automatacally, high precisely split for each slice to the same standards, which is essential for product quality and customer satisfaction.
*Cost Efficiency: With the splitting machine ,it can produce uniform foam sheets from bulk materials , optimizing foam material usage and reduce waste, which can significantly lower production and labor costs.
*Multi-Usage : With adjustable settings for thickness and speed, the EVA foam splitting machines are applicable for a wide range of material in various industries .
*Improved Safety: This skiving machine adopt automated systems ,which reduce the need for direct operator interaction with cutting mechanisms, in case of any injuries on operation.
A Wide Range Of Application
rubber or plastic foaming plates
EVA foaming plates
Sports shoes insoles
Sand shoes and slippers
Auto industry, Gasket, shock absorption, sound-proof
EVA
EPP
EPE
PE polyethylene foam
SBR styrene butadiene foam rubber
CR neoprene foam rubber
EPDM ethylene propylene diene monomer foam rubber
XPE
IX
PUR
NBR
Caution of Operation
- Since this foam skiving machine is high speed , thus when working , In it is strictly forbidden to be close to the knife belt because this rubber splitting machine got high quality steel used in this machine, has a very sharp knife.
- 2. During operation, the height of the bracket is adjusted according to the thickness of the material need to be splitted ,normally the height of the bracket must be a little higher than the thickness of material ,about 2mm, it could not too high or too lower, If you adjust it too high, the other items will be brought together .
- Workers should not wear gloves on operation , in case of the gloves are brought into the skiving material and cause industrial injury, also it is forbidden to press the material , to keep the hand from entering with the splitting material , in case of any injuries.
